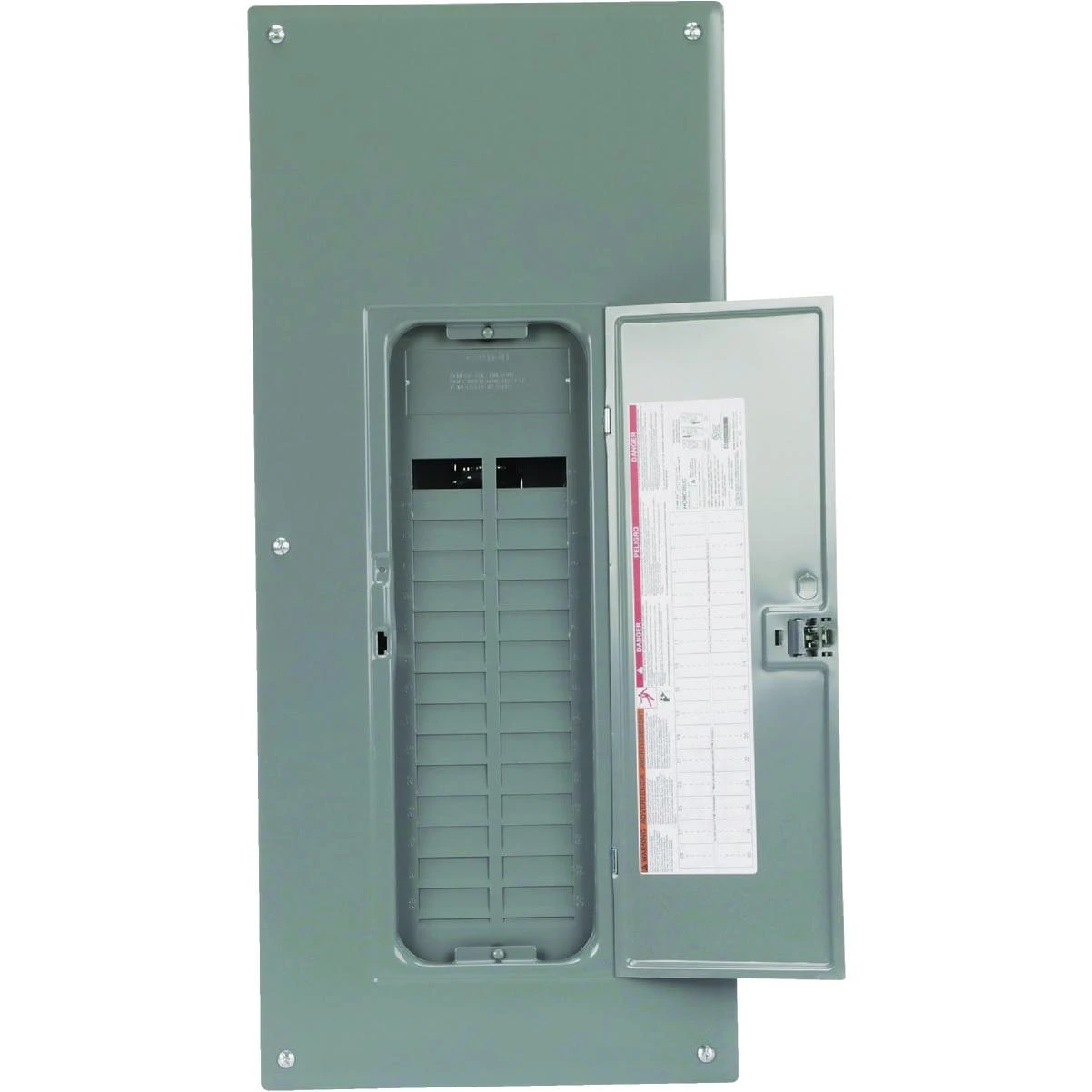

Square D Homeline 225a 30-space 60-circuit Indoor Plug On Neutral Main Lug Load Center With Ground Bar

Homeline load center that features Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Designed for residential and industrial use to protect electrical systems, equipment, and people. This Homeline load center is supplied with convertible mains that are rated at 225A 120/240 VAC single phase. Provides a 10 kA breaking capacity. This Plug On Neutral system provides 30 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire. Load center has a grounding bar. 14.25 In. W. x 33.77 In. H. x 3.74 In. D. UL Listed.
