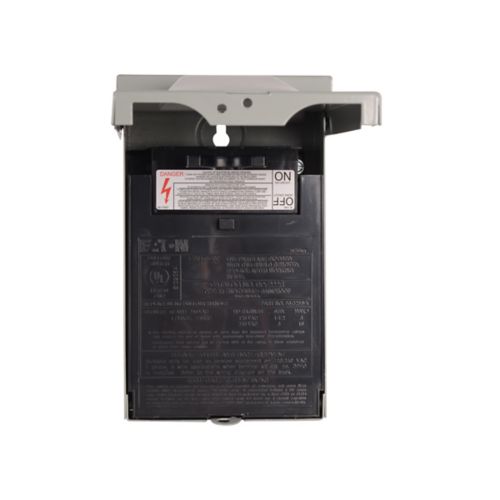

Eaton DPF222RP Air Conditioning Disconnect Fused Pullout 60A

Eaton

SKU: 527987

+ -

Eaton air conditioning disconnect, Fused pullout, Retail package, 60A, 120/240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 3 hp at 120V, 10 hp at 240V, ANSI 61 gray


Product specifications
Special features Retail package
Type Fused pullout
Amperage Rating 60A
Horsepower 3 hp at 120 V, 10 hp at 240 V
Voltage rating 120/240 V
Wire size #14-3 AWG Cu/Al
Color ANSI 61 gray
Enclosure NEMA 3R
Enclosure material Galvanized steel
Interrupt rating 10 kAIC
