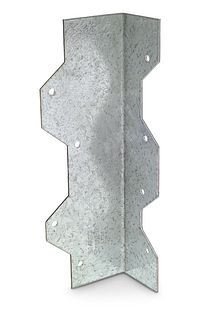

Simpson Strong L L-Shaped Angle

Simpson Strong-Tie Company

SKU: 111295

+ -

The L angle is a general utility-reinforcing connector with multiple uses. The durable design and fastening options of these load-rated skewable angles make them an ideal option compared to field-fabricated clip angles. The L angle has well-defined fastener locations, and testing ensures that the tabulated load values account for connection eccentricities.

Key Features

  • Staggered nail pattern reduces the possibility for splitting
  • Available in multiple sizes to ensure proper selection for the specific use
  • Load rated for wood and cold-formed steel applications

Material

  • 54 mil (16 ga.)

Finish

  • Galvanized (G90)

Installation

  • Use all specified fasteners; see General Notes
  • Nail the L angle’s wider leg into the joist to ensure table loads and allow correct nailing
Model No. Thickness (mil) Ga. L (in.) Coating/Material Packaging Qty.
L30 54 16 3 Zinc Galvanized, G90 1
L50 54 16 5 Zinc Galvanized, G90 1
L50Z 54 16 5 ZMAX® 1
L70 54 16 7 Zinc Galvanized, G90 1
L70Z 54 16 7 ZMAX® 1
L90 54 16 9 Zinc Galvanized, G90 1
L90Z 54 16 9 ZMAX® 1
